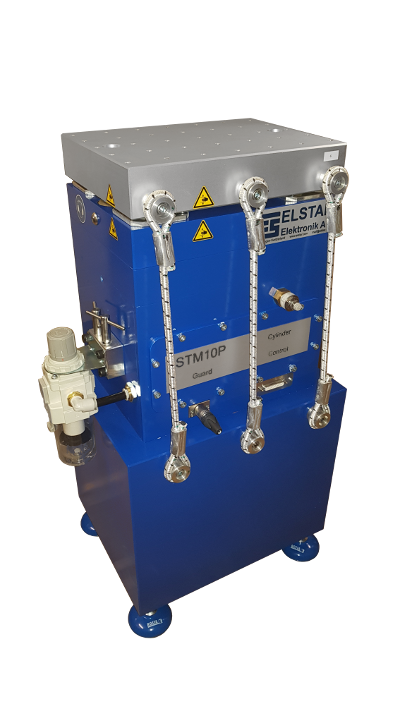

The STM10P is our high-performance flatbed shock machine for cost effective shock testing. Several machines have been delivered to the watch, defense and aerospace industry where high amplitude shocks are made for life duration testing.
- Shock repetition rate of up to ~1 shock/second
- Closed loop control on shock amplitude
- 320 x 250mm payload area
- Resonance free shock amplitudes of up to 1400g
- Ideal for development, life duration and production testing
- Free standing machine, with own seismic mass
| Max. payload: | 10 kg |
| Max. repetition rate: | up to 80/min. |
| Max. acceleration: | up to 1400g |
| Payload area: | 250x320mm |
| Shock-Direction: | Z-axis |
| Floor space: | 450mm x 370mm (height ~920mm) |
| Weight: | ~450kg |
