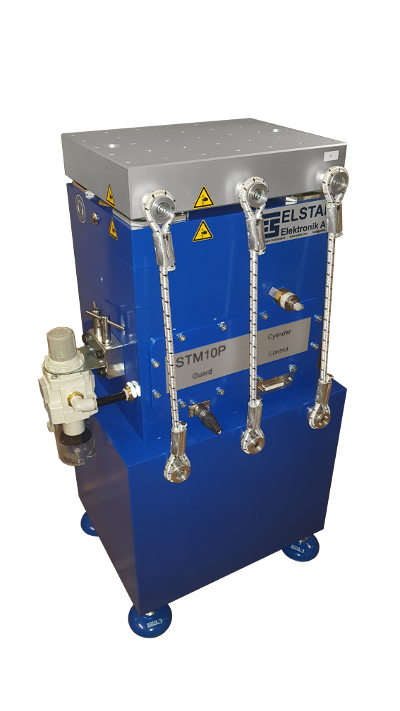

The STM10P is our high-performance flatbed shock machine for cost effective shock testing. Several machines have been delivered to the watch, defense and aerospace industry where high amplitude shocks are made for life duration testing.
The STM10P is ELSTAR’s high-performance flatbed shock machine and takes your product testing to the next level. Engineered for maximum shock amplitudes and unmatched reliability, it’s the go-to solution for the optics, watch, defense, sensor and battery industry.
Key Features
- High-speed testing: up to ~1 shock/second
- Precision control: closed-loop systems delivers accurate, repeatable shocks
- Compact yet capable: 320 x 250mm payload area
- Extreme performance: resonance free shock of up to 1500g
- Versatile applications: for development, life duration and production testing
- Stable and self contained: free standing with its own seismic mass
Applications
The STM10P ensures your components withstand the toughest conditions, delivering fast, reliable, and repeatable results every time.
| Max. payload: | 10 kg |
| Max. repetition rate: | up to 80/min. |
| Max. acceleration: | up to 1500g |
| Payload area: | 250x320mm |
| Shock-Direction: | Z-axis |
| Floor space: | 450mm x 370mm (height ~920mm) |
| Weight: | ~450kg |
