The AccuDrop 125 provides the same precision drop testing technology as the other AccuDrop series products but is meant for smaller packages. The AD-125 is an intuitive and affordable option for package performance testing.

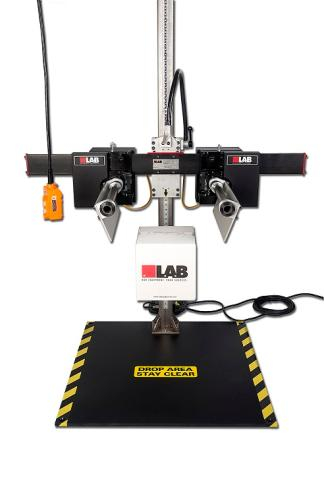

AccuDrop™ 125
| Payload Capacity | 125 lbs / 57 kg |
| Drop Height | 8-84 in / 203-2134 mm |
| Base Plate | 36x36 in / 914x914 mm (WxD) |
| Product Impact Zone | 36x26 in / 914x660 mm (WxD) |
| Utility Requirement | 100-120V/1PH/50 or 60Hz, 10 Amp |
| Machine Weight | 1,000 lbs / 454 kg |
| Machine Dimensions | 108x60x36 in/2.7x1.5x0.9 m (HxWxD) |
Standard features
- 125 lbs (56 kg) payload capacity
- 0.5” (13 mm) leaf center gap
- Automatic leaf reset
- 8″ to 84″ (203 mm x 2134 mm) drop height
- 36″ x 26″ (914 mm x 660 mm) package size
- Package holding fixture (PHF)
-
Hand-held control pendant
-
Drop height indicator scale
-
Disable drop switch
-
Meets ISTA, ASTM, and ISO standards
Optional features
-
Drop height extension
-
Safety Fence
-
Wooden base plate
-
CE Compliance
-
Enlarged Base Plate
- Non-standard voltage
- Increased drop leaf width (consult factory for sizes)
- Test Lab Professional data acquisition system
